Xgbxml Fixes Building Geometry Gaps

Originally Published in

As we approach the weekend, I finally get around to sharing a mighty beautiful Python solution for fixing gaps in the building geometry, followed by a bunch of little AI-related titbits:

Fixing Building Geometry Gaps

Many developers have encountered issues with gaps in the building geometry caused by the relatively low precision used by Revit when tessellating surfaces. Some of them can be addressed by adding appropriate fuzz and adjusting neighbouring vertices to better match and line up. However, sometimes a gap remains.

Jake of Ripcord Engineering ↗ recently shared a bunch of valuable Python and gbXML tips ↗ and followed up with a pointer to Shapely ↗ to find and fix a gap in the building geometry ↗.

He followed up with this impressive and beautiful documentation of an entire gbXML small surface solution addressing the whole building that I think warrants an entire blog post of its own, so here goes, addressing the issue on gbXML from adjacent conceptual mass/adjacent space missing small surface ↗.

Setup

Import packages:

# import packages
from xgbxml import get_parser
from xgbxml import geometry_functions, gbxml_functions, render_functions from lxml import etree
import matplotlib.pyplot as plt
import copy
import math
from uuid import uuid4

Generate parser:

# uses xgbxml to generate a lxml parser to read gbXML version 0.37
parser=get_parser(version='0.37')

Open and Render gbXML BIM Model

Open file and render 23-013 WH Swan Hill_Mass_23-08-30.xml:

# opens the file using the custom lxml parser
fp='23-013 WH Swan Hill_Mass_23-08-30.xml' tree=etree.parse(fp,parser) gbxml=tree.getroot()
# renders the Campus element
ax=gbxml.Campus.render()
ax.figure.set_size_inches(8, 8)
ax.set_title(fp)
plt.show()

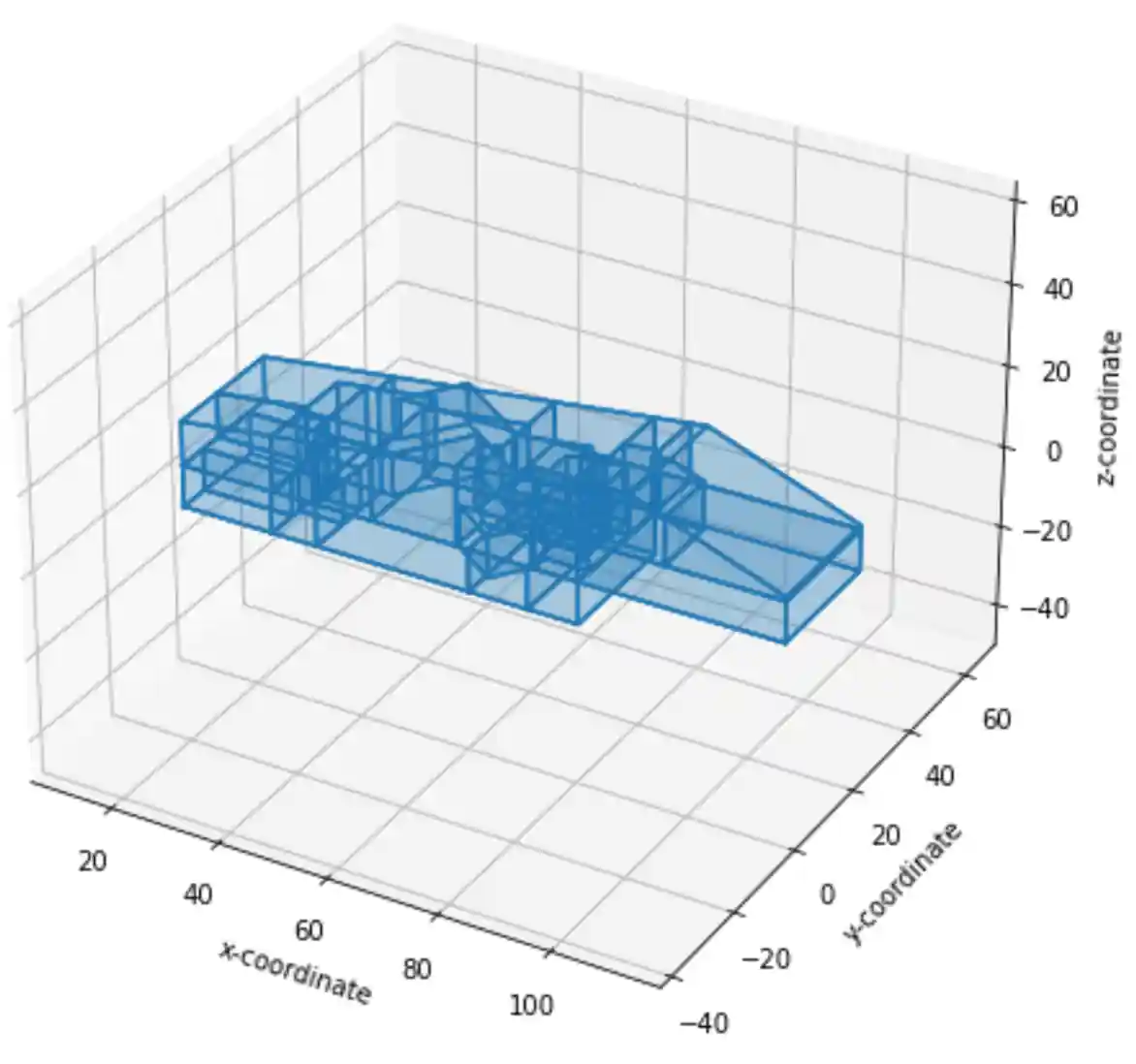

Campus rendering

Campus rendering

Identify Gaps in Geometry

Identify all gaps in the surfaces of the building; this uses a new method of the Building element, get_gaps_in_surfaces:

# identify gaps in surfaces of building
gaps=gbxml.Campus.Building.get_gaps_in_surfaces()
gaps

The result is a list of dictionaries. Each dictionary contains two items:

  • space_ids: a list of the ids of the adjacent Spaces
  • shell: a list of the coordinates of the exterior polygon of the gaps

Here, the first and third items appear to be triangle gaps with only one adjacent space – so these are exterior gaps also adjacent to the outside.

[{'space_ids': ['aim2197'],
    'shell': [
      (72.2287629, -0.3141381, 0.0),
      (72.2287629, -0.4999998, 0.0),
      (72.0986211, -0.4999998, 0.0),
      (72.2287629, -0.3141381, 0.0)]},
  {'space_ids': ['aim2553', 'aim7413'],
    'shell': [(80.2291667, 14.5625, 10.0),
      (80.0208333, 14.5625, 10.0),
      (80.0208333, 16.020833, 10.0),
      (80.2291667, 16.020833, 10.0),
      (80.2291667, 14.5625, 10.0)]},
  {'space_ids': ['aim6674'],
    'shell': [(72.2287629, -0.4999998, 10.0),
      (72.2287629, -0.3141381, 10.0),
      (72.0986211, -0.4999998, 10.0),
      (72.2287629, -0.4999998, 10.0)]}]

Add Missing Surfaces

Adding the missing surfaces to the building; first gap:

# print gap
gap=gaps[0]
gap

Result:

{'space_ids': ['aim2197'],
  'shell': [(72.2287629, -0.3141381, 0.0),
    (72.2287629, -0.4999998, 0.0),
    (72.0986211, -0.4999998, 0.0),
    (72.2287629, -0.3141381, 0.0)]}

Fix:

# add Surface
# surface element
surface=gbxml.Campus.add_Surface(
  id=str(uuid4()),
  surfaceType=None, # to do
  constructionIdRef=None, # to do
  exposedToSun=None # to do
)
# adjacent space id child element
for space_id in gap['space_ids']:
  surface.add_AdjacentSpaceId(
    spaceIdRef=space_id )
# planar geometry child element
planar_geometry = surface.add_PlanarGeometry()
planar_geometry.set_shell(gap['shell'])
# check
print(surface.tostring())

Result:

<Surface xmlns="http://www.gbxml.org/schema" id="f20a7dbc-94d5-43ee-bf64-748c3e61658b">
  <AdjacentSpaceId spaceIdRef="aim2197"/>
  <PlanarGeometry>
    <PolyLoop>
      <CartesianPoint>
        <Coordinate>72.2287629</Coordinate>
        <Coordinate>-0.3141381</Coordinate>
        <Coordinate>0.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>72.2287629</Coordinate>
        <Coordinate>-0.4999998</Coordinate>
        <Coordinate>0.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>72.0986211</Coordinate>
        <Coordinate>-0.4999998</Coordinate>
        <Coordinate>0.0</Coordinate>
      </CartesianPoint>
    </PolyLoop>
  </PlanarGeometry>
</Surface>

Second Gap

Second gap:

# print gap
gap=gaps[1]
gap

Result:

{'space_ids': ['aim2553', 'aim7413'],
  'shell':
    [(80.2291667, 14.5625, 10.0),
    (80.0208333, 14.5625, 10.0),
    (80.0208333, 16.020833, 10.0),
    (80.2291667, 16.020833, 10.0),
    (80.2291667, 14.5625, 10.0)]}

Fix:

# add Surface
# surface element
surface=gbxml.Campus.add_Surface(
  id=str(uuid4()),
  surfaceType=None, # to do
  constructionIdRef=None, # to do
  exposedToSun=None # to do
  )
# adjacent space id child element
for space_id in gap['space_ids']:
  surface.add_AdjacentSpaceId(
    spaceIdRef=space_id
    )
# planar geometry child element
planar_geometry = surface.add_PlanarGeometry()
planar_geometry.set_shell(gap['shell'])
# check
print(surface.tostring())

Result:

<Surface xmlns="http://www.gbxml.org/schema" id="407a76aa-3287-4b5e-ac62-0440fb629f72">
  <AdjacentSpaceId spaceIdRef="aim2553"/>
  <AdjacentSpaceId spaceIdRef="aim7413"/>
  <PlanarGeometry>
    <PolyLoop>
      <CartesianPoint>
        <Coordinate>80.2291667</Coordinate>
        <Coordinate>14.5625</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>80.0208333</Coordinate>
        <Coordinate>14.5625</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>80.0208333</Coordinate>
        <Coordinate>16.020833</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>80.2291667</Coordinate>
        <Coordinate>16.020833</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
    </PolyLoop>
  </PlanarGeometry>
</Surface>

Third Gap

# print gap
gap=gaps[2]
gap

Result:

{'space_ids': ['aim6674'],
  'shell':
    [(72.2287629, -0.4999998, 10.0),
    (72.2287629, -0.3141381, 10.0),
    (72.0986211, -0.4999998, 10.0),
    (72.2287629, -0.4999998, 10.0)]}

Fix:

# add Surface
# surface element
surface=gbxml.Campus.add_Surface(
  id=str(uuid4()),
  surfaceType=None, # to do
  constructionIdRef=None, # to do
  exposedToSun=None # to do
  )
# adjacent space id child element
for space_id in gap['space_ids']:
  surface.add_AdjacentSpaceId(
    spaceIdRef=space_id
    )
# planar geometry child element
planar_geometry = surface.add_PlanarGeometry()
planar_geometry.set_shell(gap['shell'])
# check
print(surface.tostring())

Result:

<Surface xmlns="http://www.gbxml.org/schema" id="96ad28f6-56fb-42b8-94d0-93c73d398866">
  <AdjacentSpaceId spaceIdRef="aim6674"/>
  <PlanarGeometry>
    <PolyLoop>
      <CartesianPoint>
        <Coordinate>72.2287629</Coordinate>
        <Coordinate>-0.4999998</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>72.2287629</Coordinate>
        <Coordinate>-0.3141381</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
      <CartesianPoint>
        <Coordinate>72.0986211</Coordinate>
        <Coordinate>-0.4999998</Coordinate>
        <Coordinate>10.0</Coordinate>
      </CartesianPoint>
    </PolyLoop>
  </PlanarGeometry>
</Surface>

Verify Waterproof

Recheck gaps in surfaces of building; there should now be no gaps.

# identify gaps in surfaces of building
gaps=gbxml.Campus.Building.get_gaps_in_surfaces()
gaps

Result:

[]

Save Model

Save the updated gbxml file.

# writes the gbXML etree to a local file
tree.write('23-013 WH Swan Hill_Mass_23-08-30-UPDATED.xml', pretty_print=True)

Many thanks again to Jake for this extremely powerful solution and his beautiful documentation.
