Bridges, Regeneration and Modeless RevitLookup

Originally Published in

I am glad and proud to announce the most exciting RevitLookup enhancement in its entire history so far, yet another need for regeneration and a great new option for your personal safety:

Modeless RevitLookup

Jmcouffin ↗ raised a cool request for a RevitLookup ↗ enhancement in issue #92 – modeless window for lookup tools ↗:

… while not able to code it myself, especially not in C#, a nice feature would be to get the windows of the tool in modeless mode. Allowing us to interact with the model directly.

NeVeSpl ↗ very kindly picked this up and heroically implemented and tested it in a whole series of pull requests:

  • 93 ↗ – Modeless windows
  • 94 ↗ – Fixed problem with tranferring focus to Revit when using selectors from modeless window
  • 95 ↗ – Handle multiple open documents at the same time
  • 96 ↗ – Fix for crash that happens when user cancel picking object in cmds SnoopPickFace, SnoopPickEdge, SnoopLinkedElement
  • 97 ↗ – Restore ability to snoop plan topologies
  • 99 ↗ – Eliminate warnings from issue #98, warnings compiling… ↗

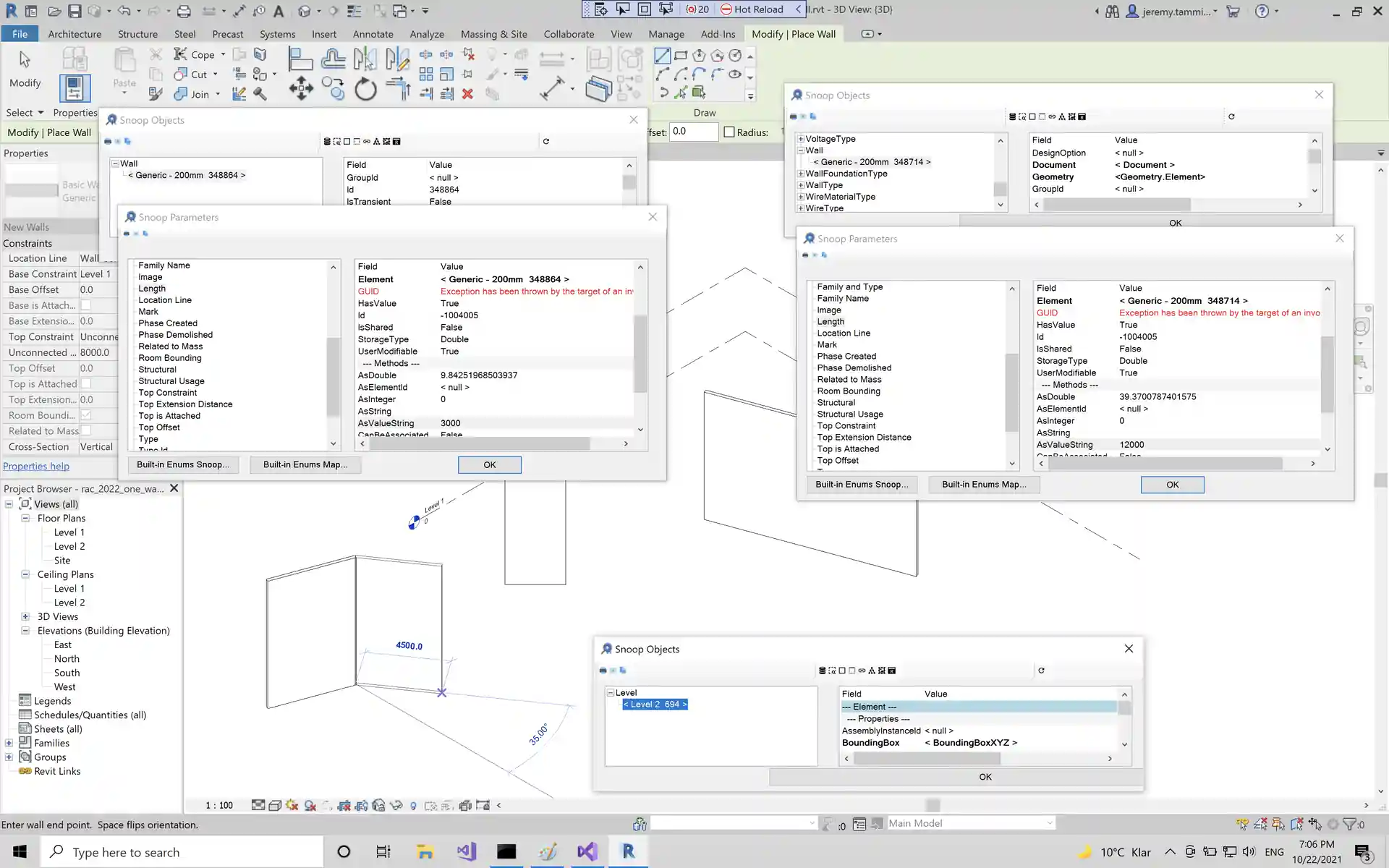

Here is a sample screen snapshot showing the result, snooping a level and two different walls, simultaneously running the Revit command to create yet more new walls:

Modeless RevitLookup

Summary by Jmcouffin:

It works much better than I even thought possible. You can now open multiple instances of RevitLookup tool and have each grab its own set of elements and data and dig through it! I tried all the functionalities without hitting a wall so far. I will keep on using it this week and let you know if anything arises. Great job @NeVeSpl!

Ever so many thanks to NeVeSpl from me too for the careful and efficient implementation and thorough testing!

Need for Regen for Read-Only Parameter

A surprising new context to add to our list of situations with a need for regeneration ↗ came up in the Revit API discussion forum ↗ thread on being unable to get parameter AsString value when the parameter is read-only ↗:

Question: I’ve been struggling with this weird problem for a few hours now.

I have some elements that has a parameter called PANEL ID. Sometimes, this parameter is in read-only mode.

When I’m accessing the element directly, I can get the parameter value perfectly fine.

When accessing the same kinds of elements as part of any collection, the value is an empty string "".

Answer: Seems like my problem was not using doc.Regenerate().

My read-only params were updated from other elements, that changed those parameter values. But I couldn’t see it in the API until I used doc.Regenerate().

Here are some other previous examples that I also already earmarked for inclusion in the ‘need to regenerate’ list ↗:

  • LevelOffset not working for arc extrusion roof ↗
    Question: I’ve encountered a strange result and I’d like to know if it’s my fault or if there’s an error somewhere or a known issue. I’m trying to create a new ExtrusionRoof with an arc profile and then change the Level Offset parameter to a different value. I use the ROOF_CONSTRAINT_OFFSET_PARAM BuiltInParameter to find that parameter and then set it. Unexpectedly, Revit sets the parameter to my value, but the roof doesn’t shift. So, there’s a discrepancy between the parameter value and the effective position of the roof.
    Answer: You are creating geometry and then in the same transaction make a change to it. In the past, such a workflow caused problems that could be solved by separating the creation and modification into 2 transactions. I would suggest you do the same and see if that resolves your problem.
  • Circular chain of reference when creating opening on a floor ↗
    Question: Unable to create opening on a created floor, posted error “circular chain of reference” Problem is floor can be create while not the opening.
    Answer: Try to regenerate the model after creating the floor and before creating the opening.

Structural Bridge Design

Question: A question came up on accessing Structural Bridge Design ↗ from an external app.

Answer: There is no API, but there is a command line that you can use:

From the 2020 release on, we have command led automation for the design section and design beam creation and analysis. All data and commands are written to a json file which drives the automation. For more details, please refer to the ASBD Automation Overview ↗.
