Creating a Sweep with Multiple Closed Loops

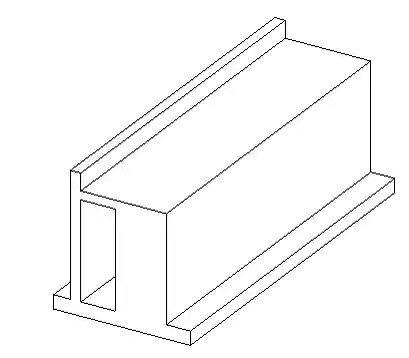

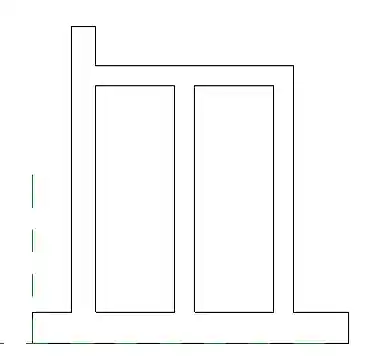

Question: I want to create a sweep with multiple closed loops in profile, like this:

I can draw the profile on the plane with model lines, but if I use it to create a sweep, it will report errors such as “cannot create sweep” without any other tips.

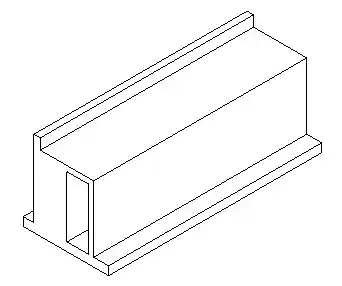

I have created sweeps using profiles with two loops successfully like this:

Is there any limitation, for example, the sweep profile can only have two closed loops at most, otherwise it will be wrong?

Later: After further testing, I still cannot create a sweep with three closed loops.

I tried orienting the two inner loops both clockwise and counterclockwise, but nothing helps.

Answer: Every loop needs to be a separate CurveArray!

I added Frank’s correction to the test code provided and integrated it into The Building Coder samples ↗ module CmdNewSweptBlend.cs ↗:

  public Sweep CreateSweepWithMultipleLoops(
    Document doc )
  {
    // Extrusion path

    CurveArray path = new CurveArray();

    path.Append( Line.CreateBound( XYZ.Zero,
      new XYZ( 0, 5, 0 ) ) );

    // Profile vertices: rectangle with two
    // rectangular holes

    XYZ p1 = new XYZ( 0, 0, 0 );
    XYZ p2 = new XYZ( 10, 0, 0 );
    XYZ p3 = new XYZ( 10, 15, 0 );
    XYZ p4 = new XYZ( 0, 15, 0 );
    XYZ a1 = new XYZ( 1, 5, 0 );
    XYZ a2 = new XYZ( 3, 5, 0 );
    XYZ a3 = new XYZ( 3, 10, 0 );
    XYZ a4 = new XYZ( 1, 10, 0 );
    XYZ b1 = new XYZ( 5, 5, 0 );
    XYZ b2 = new XYZ( 7, 5, 0 );
    XYZ b3 = new XYZ( 7, 10, 0 );
    XYZ b4 = new XYZ( 5, 10, 0 );

    CurveArrArray arrcurve = new CurveArrArray();
    CurveArray curve = new CurveArray();
    curve.Append( Line.CreateBound( p1, p2 ) );
    curve.Append( Line.CreateBound( p2, p3 ) );
    curve.Append( Line.CreateBound( p3, p4 ) );
    curve.Append( Line.CreateBound( p4, p1 ) );
    arrcurve.Append( curve );
    curve = new CurveArray();
    curve.Append( Line.CreateBound( a1, a4 ) );
    curve.Append( Line.CreateBound( a4, a3 ) );
    curve.Append( Line.CreateBound( a3, a2 ) );
    curve.Append( Line.CreateBound( a2, a1 ) );
    arrcurve.Append( curve );
    curve = new CurveArray();
    curve.Append( Line.CreateBound( b1, b4 ) );
    curve.Append( Line.CreateBound( b4, b3 ) );
    curve.Append( Line.CreateBound( b3, b2 ) );
    curve.Append( Line.CreateBound( b2, b1 ) );
    arrcurve.Append( curve );

    Application app = doc.Application;

    SweepProfile profile = app.Create
      .NewCurveLoopsProfile( arrcurve );

    Plane plane = Plane.CreateByNormalAndOrigin(
      XYZ.BasisZ, XYZ.Zero );

    SketchPlane sketchPlane = SketchPlane.Create(
      doc, plane );

    Sweep sweep = doc.FamilyCreate.NewSweep( true,
      path, sketchPlane, profile, 0,
      ProfilePlaneLocation.Start );

    return sweep;
  }

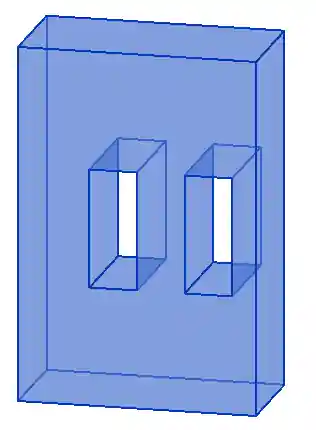

Here is the result of running this code in a new family document:

Many thanks to Frank for this solution!
