ADN Xtra Labs and API Changes since Revit 2013

Originally Published in

As usual, I am answering Revit API cases and maintaining the documentation and training material.

What I really should be doing is preparing my upcoming class for Autodesk University in Darmstadt.

On the good side, I went for a nice climb up the south ridge of Bergseeschijen ↗:

Bergseeschijen ↗

Here are some of the things I dealt with today:

API Changes from Revit 2013 to Revit 2017

Stever66 ↗ very kindly shared an useful document in the Revit API discussion forum ↗ thread on changes and additions to the Revit API 2013 to 2017 ↗ that deserves mentioning and safeguarding here as well:

He says:

I got tired of searching 4 or 5 different documents for keywords that have been changed. So I put together a single PDF with all the Changes and Additions to the Revit API from 2013 to 2017.

I assume there is no problem posting this information in one single document, and I hope it is helpful to others.

Dale.Bartlett ↗ adds:

… your document will indeed be very helpful. When this Web thing runs out of steam, the hordes will be willing to trade a lot for a real pdf.

Many thanks to Steve for this useful work, and Dale for his humorous (or frightening) contribution.

In any case, I created a copy of it here as well now.

Furthermore, I take this opportunity to point out that that all the What’s New documents are also provided online by The Building Coder:

If you prefer it offline, I provide an option for that as well:

As you hopefully know, you can download The Building Coder blog source ↗ in its entirety from its GitHub repository to keep it locally – and search using your own tools – in a safe place.

You can also use The Building Coder complete index ↗ viewable in any browser either locally or online on GitHub pages to help find specific items.

I hope you find this useful.

ADN Xtra Revit API Labs for Revit 2018

Rather overdue, I migrated the AdnRevitApiLabsXtra ↗ to Revit 2018, producing the new release 2018.0.0.0 ↗.

As with all add-in migrations that I performed so far from Revit 2017 to Revit 2018, nothing much was required.

The compilation after the flat migration simply updating the Revit API assembly references produced 7 warnings.

I removed one of them by deleting references to Revit API namespaces containing no members from the FamilyVb project, leaving 6 warnings about due to use of a deprecated API call in Labs2, where tags are added to the little house model:

  • C# warning CS0618: Document.NewTag(View, Element, bool, TagMode, TagOrientation, XYZ) is obsolete: This method is deprecated in Revit 2018 and will be removed in a future version. Use IndependentTag.Create() instead.
  • VB warning BC40000: Public Overloads Function NewTag(dbview As View, elemToTag As Element, addLeader As Boolean, tagMode As TagMode, tagOrientation As TagOrientation, pnt As XYZ) As IndependentTag is obsolete: This method is deprecated in Revit 2018 and will be removed in a future version. Use IndependentTag.Create() instead.

I still need to find out how to determine the proper reference to the family instance to pass in to the new method.

If anyone knows off-hand, please tell me.

Thank you!

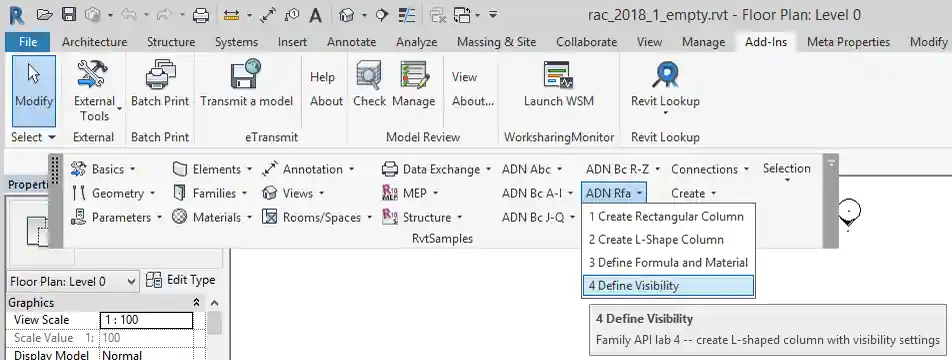

ADN Xtra Labs in Revit 2018.1

Access to Modified Combo Box Setting

The ADN Xtra Labs migration was prompted by a question on accessing the ribbon combobox string ↗:

Question: I have a combobox located on my Ribbon. I would like to retrieve the selected value as a string to use in an external command. I set the value as a public string for the application but I can’t access it outside of it. Is there something special that needs to happen for this to work?

Answer: This should be pretty simple.

The ADN Revit API labs ↗ and my Xtra labs ↗ include the C# and VB projects UiCs and UiVb demonstrating how to create the combo boxes.

Prompted by my look at them to answer your question, I migrated the latter to Revit 2018, while I was at it.

Take a look at the lines 395 to 452 in 1_Ribbon.cs ↗, defining the methods AddComboBox and comboBx_CurrentChanged, or the corresponding ones in the VB version.

The comboBx_CurrentChanged event handler is notified and called when the combo box value changes:

/// <summary>
/// Event handler for the above combo box
/// </summary>
void comboBx_CurrentChanged(
  object sender,
  ComboBoxCurrentChangedEventArgs e )
{
  // Cast sender as TextBox to retrieve text value
  ComboBox combodata = sender as ComboBox;
  ComboBoxMember member = combodata.Current;
  TaskDialog.Show( "Combobox Selection",
    "Your new selection: " + member.ItemText );
}

Store the updated value somewhere and make it available via an externally accessible method or property on your class and you will be all set and ready to go.
